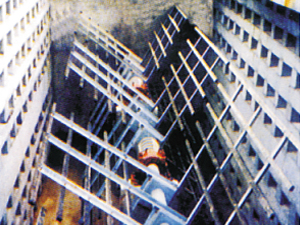

Product Name:WHF type horizontal shaft machine feedback puddle mixer
Description：It is used of feedback mill moment after admixture working procedure of feedwater technics flow. It makes medicament form thick wadding body in water.
According to 0.6-0.2m/s order of water intake velocity, it is intercalated as three grade, four grade or five grade in feedback pool. Each grade of puddle mixer is set 3-4 beaters.
It is made up of drive fitting, through-the-wall water sealing ring, beater and underwater axletree. Its drive fitting disparts two kinds of constant speed and shifts. Its infinitely variable speeds can be adjusted to ideal rev accord with water quality, temperature & capacity and added medicament.
|
Structural sketch map
Technical parameter
|
Type
|
Tank size
|
Puddle mixer speed
(r/min) |
Puddle mixer
power(kw) |
Blade Dia |
Paddle length |
Shaft Dia |
|
L1(m)
|
H(m) |
B(m) |
I1(m) |
1 |
2 |
3 |
4 |
5 |
1 |
2 |
3 |
4 |
5 |
D(m) |
1(m) |
d(m) |
| WHF-1 |
11.8 |
4.3 |
3 |
1.4 |
5.2 |
3.8 |
2.8 |
1.8 |
|
4 |
1.5 |
0.75 |
0.75 |
|
2100 |
3500 |
140 |
| WHF-2 |
18.3 |
4.2 |
3.8 |
1.8 |
5.2 |
3.8 |
2.8 |
1.8 |
|
7.5 |
3 |
1.5 |
1.5 |
|
3000 |
400 |
180 |
| WHF-3 |
13.0 |
4.05 |
3.25 |
2.0 |
5.2 |
3.8 |
2.8 |
1.8 |
1.8 |
7.5 |
3 |
1.5 |
1.1 |
1.1 |
3200 |
2800 |
180 |
Remaining hole
| Type |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
| WHF-1 |
995 |
945 |
976 |
896 |
888 |
837 |
995 |
896 |
| WHF-2 |
1128 |
1145 |
1120 |
1125 |
1116 |
1105 |
1119 |
1125 |
| WHF-3 |
1128 |
1145 |
1120 |
1125 |
1116 |
1105 |
1119 |
1125 |
| Type |
B1 |
B2 |
B3 |
B4 |
B5 |
B6 |
B7 |
B8 |
| WHF-1 |
515 |
500 |
502 |
420 |
456 |
340 |
440 |
420 |
| WHF-2 |
840 |
630 |
500 |
690 |
420 |
580 |
500 |
580 |
| WHF-3 |
840 |
630 |
500 |
690 |
420 |
580 |
500 |
580 |
|
|
